3D Scan

Thanks to our partnership with the company JAHN interprof GmbH we are allowed to offer our customers support in the area of 3D scanning:

FARO measuring arm Platinum M Laser Line Probe FAROBIu SD

FARO’s highly accurate and stable portable measuring device with a measuring volume of 3.5 m contains a

  • Laser Line ProbeFARO Blu SD VT (Genauigkeit +/- 25 µm)
  • MPE von 0,090 mm nach ISO 10360-8
  • Arm with bluetooth and wireless technology
  • high scanning speed
  • high resolution (120,000 points / sec.)
  • Software PolyWorks 2018 Inspector Premium (IGES/Step)

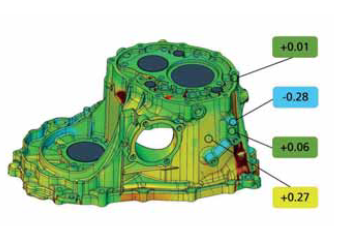

GOM Atos Offline-professional Evaluation station

  • High-end workstation for evaluating grids, point clouds and CT data
  • Combination of material tests and geometric dimensioning / testing
  • Element construction / standard geometries
  • Alignment according to all standards
  • Inspection of CAD data, comparison of parts to parts, processing of polygon meshes
  • Import of all common standard formats
  • Level management / golden nets
  • Digital assembly
  • Report module graphical / tabular
  • Automations

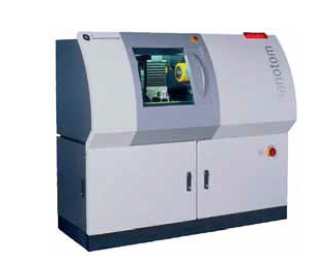

Computertomograph GE phoenix nanotom m

  • 180 kV Nanofocus tube
  • High detail recognition down to 0.2 µm
  • Max. Sample size:
    • 240 mm x 250 mm
    • Weight: 3 kg
  • Suitable for:
    • small components
    • Plastics
    • biological samples

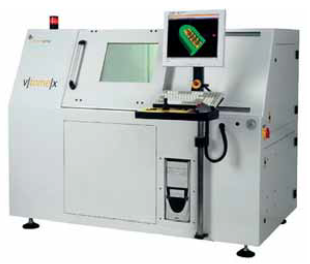

Computertomograph GE phoenix v|tome|x s

  • 225 kV microfocus tube
  • Detail recognizability up to 10 µm
  • Max. Sample size:
    • 420 mm x 135 mm
    • Weight: 10 kg
  • Suitable for:
    • Steel up to 20 mm
    • Aluminium up to 80 mm
    • Plastic up to 100 mm wall thickness

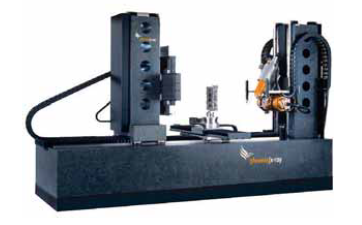

Computertomograph GE phoenix v|tome|x L450

  • 240 kV and 450 kV tubes
  • Detail recognizability up to 20 µm
  • Max. Sample size:
    • 2.400 mm x 800 mm
    • Weight: 100 kg
  • Suitable for:
    • Steel up to 70 mm
    • Aluminium up to 300 mm
    • Plastic up to 500 mm wall thickness
